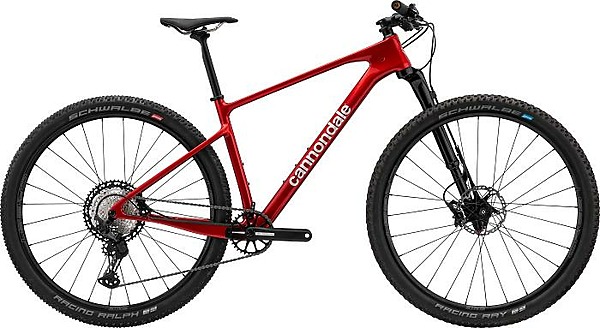

CANNONDALE SCALPEL HT CARBON 2

•

  Platform


  Scalpel HT


•

  Model Name


  Scalpel HT Carbon 2


•

  Model Code


  C25231U

Frameset

•

  Frame


  Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger


•

  Fork


  Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset


•

  Headset


  Integrated, 1-1/8 to 1.5″, sealed angular contact bearings

Drivetrain

•

  Rear Derailleur


  Shimano XT


•

  Shifters


  Shimano XT, 12-speed


•

  Chain


  Shimano SLX, 12-speed


•

  Crank


  HollowGram, BB30 83MTB, OPI SpideRing, 34T, 55mm chainline


•

  Rear Cogs


  Shimano XT, 10-51, 12-speed


•

  Bottom Bracket


  Cannondale Alloy PressFit30

Brakes

•

  Brakes


  Shimano XT hydraulic disc, 160/160mm XT rotors


•

  Brake Levers


  Shimano XT hydraulic disc

•

  Rims


  Stan’s NoTubes Crest MK4, 28h, tubeless ready


•

  Spokes


  DT Swiss Competition


•

  Tires


  (F) Schwalbe Racing Ray EVO, 29 x 2.25″, SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix Speed, tubeless ready


•

  Tire Size


  2.25


•

  Wheel Size


  29


•

  Hubs


  (F) HollowGram Lefty 60 / (R) Shimano7110, 12x148mm thru-axle


•

  Front Tire


  Schwalbe Racing Ray EVO, 29 x 2.25″, SnakeSkin, Addix Speedgrip, tubeless ready


•

  Rear Tire


  Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix Speed, tubeless ready
